Brand Name : Easwon
Model Number : H630
Certification : ISO
Place of Origin : China
MOQ : 1 set
Price : negotiated
Payment Terms : T/T or L/C
Supply Ability : 500 set per month
Delivery Time : within 20 days
Packaging Details : carton
Max. planing width : 630mm
Max. planing thickness : 200mm
Max. planing depth : 5mm
Power : 7.5kw/380V

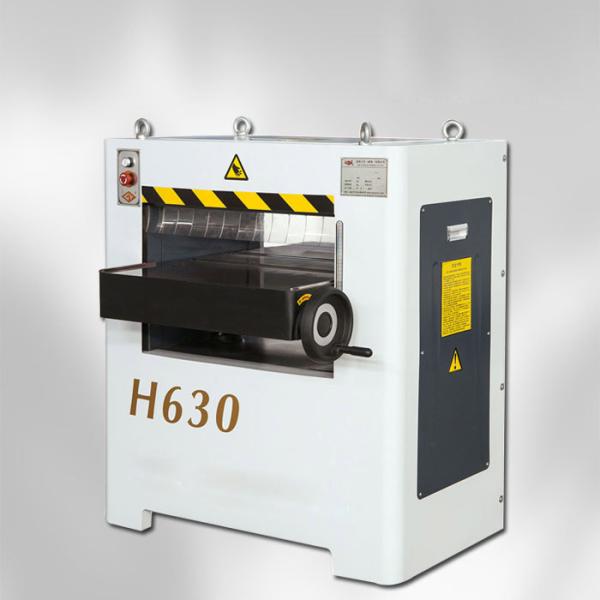

H630 woodworking single-side thicknesser
Max. planing width: 630mm
Max. planing thickness: 200mm
Max. planning depth: 5mm


Cast steel helical feed roller feeding smoothly Straight dust more thoroughly

Special feeding transmission more reliable Ultra-high speed spindle is smooth for the machining piece
| H630 | ||
| Max. planning width | mm | 630 |
| Max. planning thickness | mm | 200 |
| Feeding speed | m/min | 7; 12 |
| Max. planning depth | mm | 5 |
| Spindle speed | r/min | 5500 |
| Blade number | 4 | |
| Spindle diameter | mm | 105 |
| Motor | Kw/v | 7.5/380 |

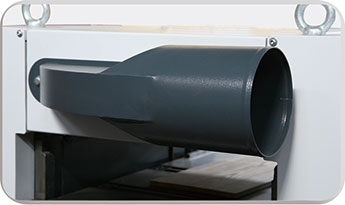

| Dust outlet diameter | mm | 150 |
| Overall dimension | mm | 1053X849X1143 |
| Net weight | kg | 495 |
| Table motor lift | No |
Contact details:
Easwon International Co.,Limited
Tony Zhuang
Sales manager
Mobile/Whatsapp: +86-15153984859
|
|
H630 Woodworking Single side thicknessor Max. planning width 630mm Images |
